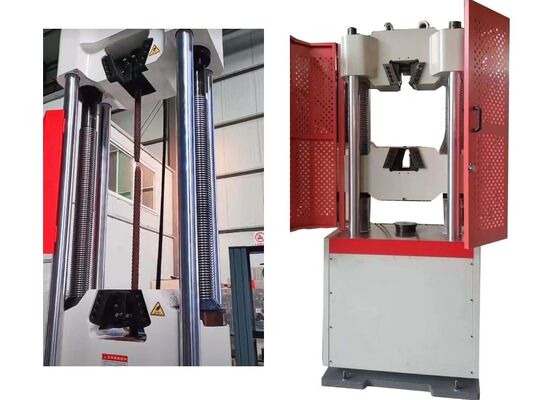

Hydraulic Universal Testing Machine with Load Cell Computer Control
This advanced hydraulic universal testing machine is designed for accurate tensile, compression, and bending testing of metallic materials. Equipped with computer-controlled load cell technology, it delivers precise mechanical property evaluations across a wide range of applications.
Key Features
- Available in capacities from 100 to 2000KN (100/200 Tons)
- Bottom-mounted oil cylinder design with upper tensile test area
- Motor-driven lower cross head for flexible testing clearance adjustment

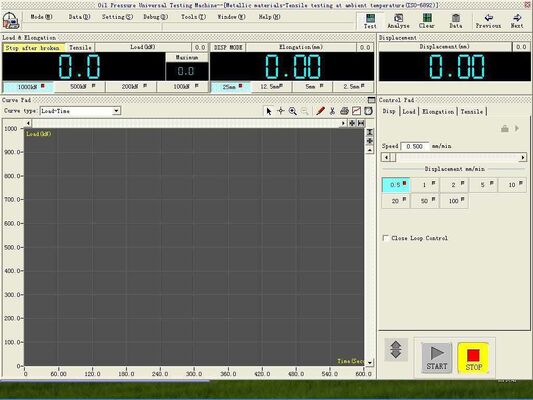

- Advanced load cell force measurement with real-time computer control
- Comprehensive testing capabilities including tensile, compressive, bending, and shear tests
Competitive Pricing Advantage
Through in-house research, innovation, and independent fabrication of core components, we maintain high quality standards while reducing costs. Our equipment delivers superior value compared to lower-cost alternatives, minimizing maintenance expenses and maximizing operational efficiency.
Compliance Standards
Meets international standards including ISO 6934 BS4449, ASTM C39, ASTM A370, ASTM E4, ASTM E8, ASTME9, ASTMA615, ISO6892, ISO7438, ISO7500-1, ISO 15630 EN10002-4, GB/T228-2002, GB 16491-2008, and numerous other industry specifications.
Equipment Expansion Capabilities
The modular design supports various fixtures for expanded testing applications:
- Bolt fixtures for tensile testing and load protection verification
- Bending fixtures for round rods and sheet workpieces
- Shear clamps for round bar sample strength measurement
- Compression accessories for concrete and cement specimen testing
- Specialized fixtures for steel ball, anchor chain, and fastener performance tests
Technical Specifications
| Parameter |
Specification |
| Model |
WAW-2000D |
| Maximum Test Force |
2000KN |
| Structure |
Four columns, two ball screws, oil cylinder down-setting type |
| Load Range |
2%-100% |
| Constant Velocity Stress Control Range |
≤±5% |
| Middle Beam Elevating Speed |
120 mm/min |
| Maximum Tensile Space |
800mm |
| Maximum Compression Space |
700mm |
| Piston Stroke |
210mm |
| Stranded Wire Clamping Range |
Φ20-60mm |
| Flat Sample Clamping Range |
0-30mm |
| Total Power |
3.2KW |
| Compression Plate Size |
Φ160mm |
| Bending Support Roller Distance |
300mm |
Packaging and Shipping
Frequently Asked Questions
Is your company a trading enterprise or a manufacturing factory?
We operate as an integrated manufacturing and trading entity with 18 years of experience in the test instrument industry, including 14 years of export expertise providing comprehensive product solutions.
How can we select the most suitable test equipment?
Our professional R&D team provides customized recommendations based on your specific testing requirements and technical specifications.
What are your delivery terms?
Most models are available from stock. Standard delivery is 15-20 working days after advance payment, with expedited options for urgent orders.
Do you provide customization services?
Yes, we offer both standard and custom-designed testing equipment tailored to your specific requirements.
Is it possible to visit your factory?
We warmly welcome factory visits and provide assistance with hotel reservations and airport reception services.
What is your warranty policy?
We provide a one-year warranty with technical support, free replacement of defective parts, and on-site engineer service when needed.
How is the equipment packaged for transport?
All machines are packaged in reinforced, standard export-grade wooden boxes that provide comprehensive protection during sea and air transport.
