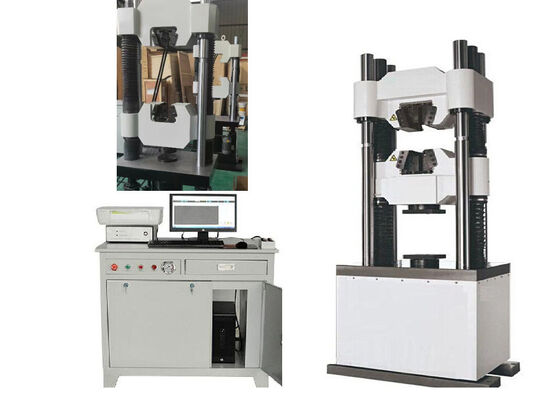

Hydraulic Universal Testing Machine for Testing Mechanical Performance Indices Tensile Strength and Percentage Elongation
1. Application
This equipment is primarily designated for tensile testing of metal materials. It is capable of detecting and analyzing key mechanical performance indicators, covering tensile strength, yield strength, stipulated plastic extension strength, percentage elongation after fracture and elasticity modulus.
2.Characteristic
Speed-dependent testing adopts an automatic regulating control mode.
Sample fixation is realized via hydraulic wedge clamping structure.

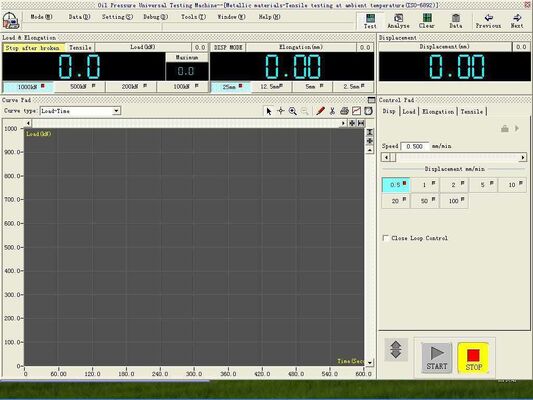

All acquired test data gets automatically saved in the system; meanwhile, complete test reports containing original data and corresponding test curves can be auto-generated and printed out without manual intervention.
3. Price advantage
We continuously scale up independent R&D investment and have established in-house processing centers to realize self-production of core components. This optimized production mode effectively cuts down intermediate operating costs while maintaining consistent product quality.
Our premium-grade equipment delivers superior comprehensive value compared with low-priced, inferior testing devices from other suppliers. Lower equipment failure rates help clients substantially cut daily maintenance expenditures and boost overall operational efficiency. Such high-quality equipment with competitive pricing brings tangible and long-term economic benefits to users.
4. Meet Standards
ISO 6892, ISO 6934, BS4449, ASTM C39, ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.
5. Overload protection
The overload protection system will trigger an automatic equipment halt once the applied test force exceeds 2% to 5% of the maximum test force for the corresponding gear grade.
The built-in travel protection mechanism will shut down the pump motor automatically when the piston reaches its upper stroke limit position.
6. Main technical parameters
|
Model
|
WAW-2000D
|
|
Max. test force(kN)
|
2000KN
|
|
Structure
|
Four columns two ball screws,
oil cylinder down-setting type
|
|
Load range
|
1%-100%
|
|
Middle Beam elevating speed (mm/min)
|
170 mm/min
|
|
Max. Tensile space (mm)
|
700mm
|
|
Max. Compression space (mm)
|
600mm
|
|
Piston stroke(mm)
|
250mm
|
|
Stranded wire clamping range
|
Φ35-80mm
|
|
Power total
|
3.2KW
|
|
Compression plate size
|
Φ160mm
|
|
Bending support roller distance
|
350mm
|
7.Packing and Shipping
8.Frequently Asked Questions:
Q1: Does your enterprise operate as a pure trader or a production manufacturer?
A: We run an integrated production and export business. Having specialized in testing instrument manufacture for 18 years, our enterprise accumulates 14 years of mature overseas exporting experience.
Q2: How can buyers select matched testing equipment?
A: Share your intended testing items and required technical parameters with our specialist team, then we will put forward targeted product recommendations accordingly.
Q3: What is your standard order lead time?
A: Most mainstream models are stocked inside our production workshop. For out-of-stock items, production and shipment take 15~20 working days after receiving your deposit payment. Priority production arrangements are available for rush orders upon your request.
Q4: Is customised equipment development available?
A: Customization service is fully accessible. Apart from standard specification testing equipment, we tailor-make devices compliant with your personalized application demands. Feel free to inform us of detailed demands and we spare no effort to satisfy your usage requirements.
Q5: Is on-site factory inspection permitted prior to order confirmation?
A: All customers and their delegations are cordially invited to inspect our production base. Our staff assists with hotel booking and airport pickup arrangements free of extra trouble.
Q6: What after-sales warranty policy do you provide?
A: All products enjoy a twelve-month standard warranty. Within warranty coverage, we supply ongoing technical guidance and spare parts replacement; field on-site service from our engineering crew can be scheduled when circumstances require.
Q7: What packaging solution is adopted to safeguard machines in transit?
A: Every testing unit is sealed inside export-grade wooden cases for full protection. A great number of our instruments have been dispatched globally via sea freight or air transport with zero damage incidents during shipment.
