Hydraulic Universal Testing Machine designed to meet ISO ASTM and BSEN standards for comprehensive mechanical property evaluation

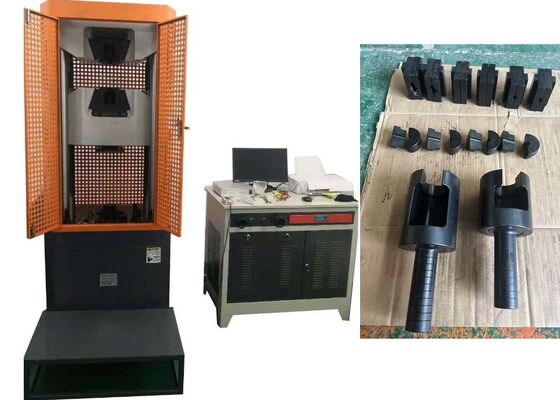

Large Image : Hydraulic Universal Testing Machine designed to meet ISO ASTM and BSEN standards for comprehensive mechanical property evaluation

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	WEW-300D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	20~30 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	30 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydraulic Universal Testing Machine Designed To Meet ISO ASTM And BSEN Standards For Comprehensive Mechanical Property Evaluation	Model:	WEW-300D
Structure:	4 Columns	Control Way:	Manual
Max.load:	300KN	Max. Tension Test Space:	800mm (can Customize)
Max.Compression Test Space:	600mm (can Customize)	Round Specimen Clamping Range:	φ6-13mm, φ13-26mm,
Highlight:	Hydraulic Universal Testing Machine ISO standards , Hydraulic Universal Testing Machine mechanical evaluation , Hydraulic Universal Testing Machine ASTM compliant

Hydraulic Universal Testing Machine

Designed to meet ISO, ASTM, and BSEN standards for comprehensive mechanical property evaluation of materials.

Applications

High-accuracy, multi-functional material inspection apparatus for evaluating mechanical properties of metallic materials, non-metallic materials, and composite materials under tensile, compressive, and flexural loading conditions.

Compliance Standards

All testing operations comply with ISO6892, BS4449, ASTM C39, ISO75001, ASTM A370, ASTM E4, ASTM E8, and BSEN specifications.

Host Features

Optimized Spatial Layout: Fuel tank installed beneath main host with tensile testing above and compression/bending/shearing testing below
Heavy-Duty Structural Framework: Rugged four-column, two-lead screw design for outstanding stability
Integrated Monolithic Construction: One-piece design for exceptional structural rigidity and prevention of micro-deformation
Clearance-Free Transmission: Adjustable clearance lead screw-nut mechanism eliminates transmission backlash
High-Performance Sealing: Precision gap sealing technology enhances accuracy and prolongs hydraulic system life

Safety Protection Systems

Overload Safety Interlock: Automatically activates when testing force exceeds 2-5% of maximum range
Travel Limit Safety Interlock: Triggers protection and shuts down pump motor at predefined upper limit

Technical Specifications

Model	WEW-300D
Structure	4 column
Control Method	Manual
Maximum Load	300kN
Load Accuracy	≤±1% / ≤±0.5%
Load Range	2%-100%FS / 0.5%-100%FS
Load Resolution	1/300000
Deformation Measurement Range	2%～100%FS
Deformation Accuracy	≤±1%/±0.5%
Displacement Resolution	0.01mm
Displacement Error	≤±0.5%
Maximum Piston Stroke	250mm
Maximum Piston Speed	0-50mm/min stepless speed adjusting
Crosshead Lifting Speed	120mm/min
Maximum Tension Test Space	600mm (customizable)
Maximum Compression Test Space	550mm (customizable)
Effective Width	440mm
Clamping Method	Hydraulic Automatic Clamp Fixture
Round Specimen Range	φ6-13mm, φ13-26mm
Flat Specimen Range	0-15mm
Compression Plate Size	φ120mm
Power Supply	3-phase, AC380V, 50Hz (customizable)

Product Series Overview

WAW Series: Computer-controlled servo hydraulic universal testing machine with full software control and automated data analysis
WEW Series: Computer-displayed manually controlled hydraulic testing machine (this model) with manual control and software data analysis
WE Series: Pendulum dynamometer displayed manually controlled universal testing machine with manual control and direct mechanical display

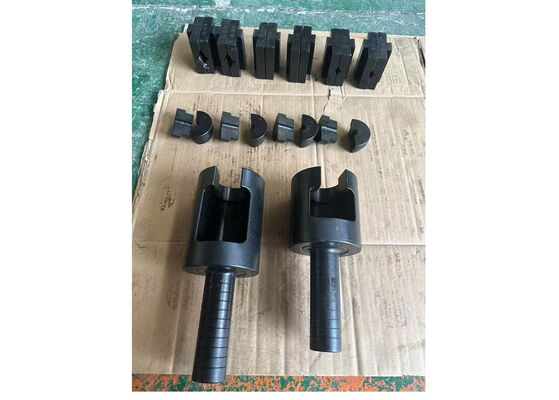

Product Images
