Hydraulic Universal Testing Machine
Suitable for testing rubber, plastic, wire, cable, optical fiber, and composite materials
Product Introduction

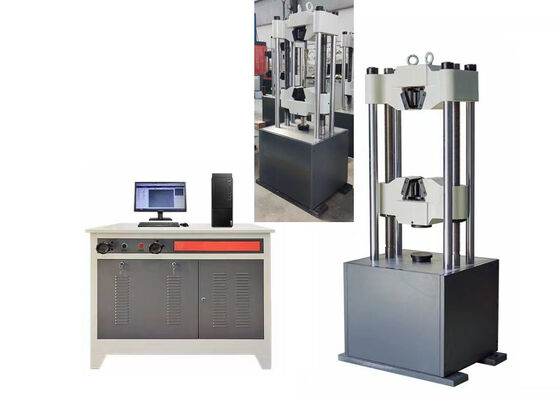

The 600KN 60-ton Computerized Electric Hydraulic Servo Universal Testing Machine (UTM) is designed to perform tensile, compression, bending, shear, peel, tear, two-point extension, and other mechanical tests on metallic and non-metallic materials.
- Applicable for testing rubber, plastics, wire and cable, optical fiber and cable, safety belts, leather-based composite materials, plastic profiles, waterproof membranes, and various metal products
- Capable of testing high-hardness steels, castings, plates, strips, and non-ferrous metal wires
Industry Applications
This testing machine is extensively utilized for quality control across diverse industries including:
- Metallurgical iron and steel, rubber & plastics
- Machinery manufacturing and electronic equipment
- Automobile manufacturing and textile fibers
- Wire and cable, packaging materials and foodstuffs
- Instrumentation and medical equipment
- Civil nuclear energy and civil aviation
- Colleges, universities, and research laboratories
- Inspection, arbitration, and technical supervision departments
- Building materials, ceramics, petroleum & chemical industries
Working Principle
- Hydraulic oil from the fuel tank is fed into the oil circuit via a motor-driven high-pressure pump
- Oil passes sequentially through the check valve, high-pressure oil filter, differential pressure valve group and servo valve before entering the oil cylinder

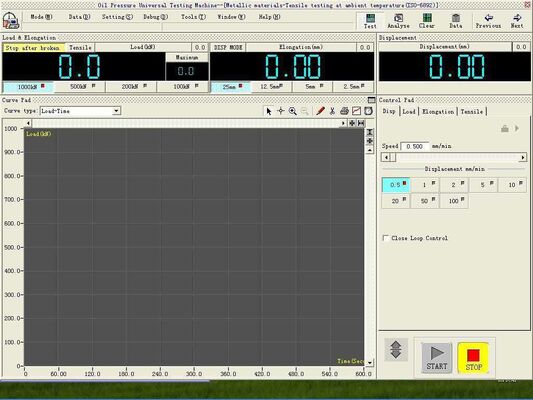

- The computer sends control signals to the servo valve to adjust opening degree and flow direction
- This controls flow rate entering the oil cylinder to realize constant test force and displacement control
- Hydraulic oil flows back to the fuel tank via the oil return valve after passing through pressure tubing
Compliance Standards
ISO 6934, BS4449, ASTM C39, ASTM A370, ASTM E4, ASTM E8, ASTM E9, ASTM A615, ISO6892, ISO7438, ISO7500-1, ISO 15630, EN10002-4, GB/T228-2002, GB 16491-2008, GB6349-1986, ASTM C165, and related standards
Technical Parameters
| Parameter |
Specification |
| Model |
WAW-600D |
| Max. Test Force |
600KN |
| Structure |
Four columns two ball screws, oil cylinder down-setting type |
| Load Range |
1%-100% |
| Constant Velocity Stress Control Range |
≤±5% |
| Middle Beam Elevating Speed |
120 mm/min |
| Max. Tensile Space |
700mm |
| Max. Compression Space |
600mm |
| Piston Stroke |
250mm |
| Stranded Wire Clamping Range |
Φ6-40mm |
| Flat Sample Clamping Range |
0-30mm |
| Power Total |
2.2KW |
| Compression Plate Size |
Φ160mm |
| Bending Support Roller Distance |
300mm |
Packing and Shipping
Frequently Asked Questions
Is your enterprise a pure trading company or an integrated manufacturer with in-house manufacturing capacity?
We operate under an integrated manufacturing + trading business model. We have been focused on the testing instruments industry for 18 consecutive years, and have accumulated 14 years of professional cross-border export experience.
How can we select the most appropriate testing equipment for our application requirements?
Our professional technical team will provide tailored, optimal equipment selection recommendations once you inform us of your required test items and corresponding technical specifications.
What is your standard delivery lead time?
Most mainstream equipment models are maintained in factory stock throughout the year. For out-of-stock specifications, standard delivery lead time is 15 to 20 working days upon receipt of the advance deposit. Special priority processing arrangements can be made for urgent order demands.
Do you offer custom equipment manufacturing services?
Yes, absolutely. We provide both standard-specification testing machines and fully customized equipment built strictly according to your actual application needs. Feel free to share your detailed technical requirements with us, and we will do our utmost to satisfy all your needs.
Are we allowed to conduct an on-site factory visit prior to order confirmation?
Yes, we warmly welcome and sincerely invite you and your team to visit our manufacturing facility. We will provide full logistic support including hotel reservation assistance and dedicated airport pick-up service.
What after-sales warranty coverage do you provide for your equipment?
Generally, all our testing equipment is covered by a 12-month comprehensive warranty. Within the warranty period, we offer continuous remote technical support and free replacement of defective spare parts. On-site service by our professional engineering team can be arranged as needed.
What packaging solution do you adopt for equipment delivery, and can it guarantee damage-free transportation?
All finished equipment is packaged with standard export heavy-duty wooden cases to deliver comprehensive shock and impact protection. We have shipped numerous testing machines to overseas markets via sea and air freight with zero transportation damage records.
