Hydrostatic Pressure Testing Machine Featuring Industrial Tablet Control and Direct Control for Pipeline Pressure Testing

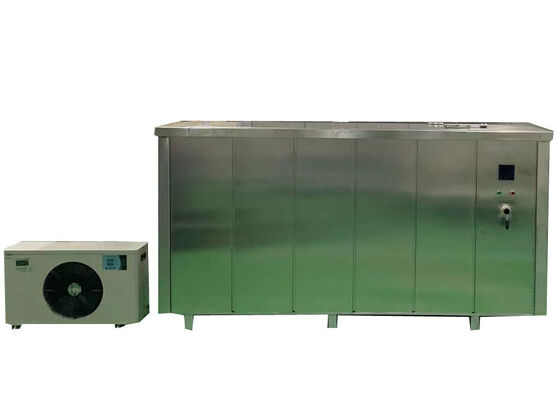

Large Image : Hydrostatic Pressure Testing Machine Featuring Industrial Tablet Control and Direct Control for Pipeline Pressure Testing

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XGY-10C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	7 work days
Payment Terms:	T/T,L/C,Western Union,MoneyGram,D/A,D/P
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Pressure Testing Machine Featuring Industrial Tablet Control And Direct Control For Pipeline Pressure Testing	Model:	XGY-10C
Max. Pressure:	10MPA, 100BAR, 16MPA, 160BAR	Pressure Resolution:	0.01MPA, 0.1BAR
Test Stations:	5, 10, 15, 20, 25, 30, 50 Can Customized	Temp. Range:	15-95 ℃
Constant Pressure Accuracy:	-1%~+2%	Material Of Water Tank:	304# Stainless Steel
Material Of End Caps:	304# Stainless Steel Or Carbon Steel	Standards:	ISO 1167, ASTM D1598/1599, ISO 4427
Highlight:	Hydrostatic Pressure Testing Machine with industrial tablet control , Hydrostatic Pressure Testing Machine for pipeline pressure testing , Hydrostatic Pressure Testing Machine with direct control

Hydrostatic Pressure Testing Machine with Industrial Tablet Control

This advanced hydrostatic pressure testing machine features industrial tablet control and direct control capabilities for comprehensive pipeline pressure testing applications.

Key Applications

Rated with a maximum working pressure of 10 MPa, this hydrostatic burst testing device is engineered to quantify the failure endurance period of thermoplastic piping products when subjected to abrupt hydraulic burst impacts and sustained long-duration constant hydraulic pressure. The equipment serves as essential testing hardware for research institutions, official quality supervision bodies, and full-scale pipe manufacturing facilities.

System Features

Industrial tablet terminal for direct and intuitive on-site operational control
Multi-channel integrated structure with high-precision pressure control units
Dual control modes supporting PC terminal and Precision Pressure Controlling Unit coordination
Independent distributed control for each test station with no mutual interference
Expandable to maximum 100 test stations
Multiple professional testing modes including hydrostatic pressure test, hydraulic burst test, and 8760 long-term endurance test
Configurable maximum test pressure range from 3 MPa to 100 MPa
Intelligent identification of eight core test statuses with automatic valid/invalid test time calculation

Technical Specifications

Pipe diameter range	Φ10~Φ1800mm
Working stations	5, 10, 15, 20, 25, 30 or 50 (customizable)
Operation mode	PC control
Pressure range	0.2~10MPa (customizable)
Pressure resolution	0.001MPa, 0.01Bar
Pressure control accuracy	-1%~+2%
Measuring range	5%~100% F.S.
Timing range	1s~9999H 99M 99S
Timing accuracy	±0.1%
Temperature control system	15~95℃ with cooling system
Temperature control accuracy	±0.5℃
Power supply	380V, three-phase four-wire system

Standard Compliance

This testing equipment fully complies with authoritative domestic and international standards including GB/T 6111-2003, GB/T 15560-95, GB/T 18997.1-2003, GB/T 18997.2-2003, ISO 1167-2006, ASTM D1598-2004 and ASTM D1599.

System Configuration
