Pipe Testing Equipment with Modular Structure & Intelligent Control System for Reliable Pipeline Pressure Test Procedures
Summary:
This testing machine was custom manufactured by our company for a renowned European brand in compliance with European technical standards, and has not exhibited any technical or quality issues during years of use across Europe.

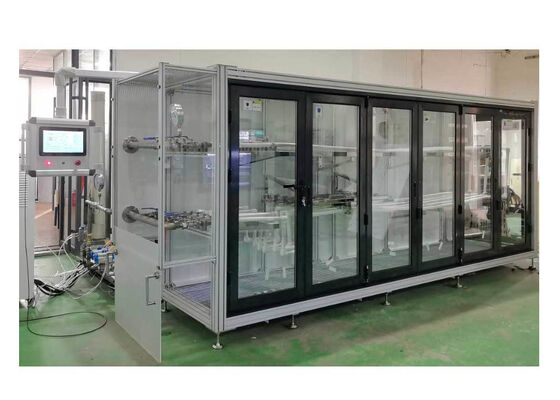

This instrument primarily consists of several major components: a cold water exchange execution module, a hot water exchange execution module, a sample chamber, and an industrial chiller. It features an aesthetically pleasing design, modular architecture, advanced technology, stable performance, reliable quality, and user-friendly operation.
Instrument failure:
1. Smart switching: The control system automatically adjusts based on the inlet and outlet water temperatures of the sample pipeline, liquid levels in the cold and hot water tanks, and the switching duration between cold and hot modes. It intelligently operates the return valves of both tanks to ensure that most cold water flows back to the cold tank during cycle switching, with temperature fluctuations between tanks remaining below 3°C, resulting in low energy consumption during system operation.
2. Low-noise operation: The test pipeline is equipped with a water flow controller independently designed by our company, significantly reducing noise generated by high-speed water flow erosion.
3. Refrigeration system: Utilizes imported industrial chillers as the low-temperature cold source, employing water-to-water cooling to enhance refrigeration efficiency and ensure the compressor operates at optimal performance, thereby improving both cooling efficiency and significantly extending the service life of the industrial chillers.
4. Flow Display: An imported flow sensor that displays pipeline flow information in real time (optional).
5. Pre-tensioning device: Features an independent rigid support frame with a lever-based prestressing mechanism, capable of displaying the loading force value in real time (optional).
6. Maintenance-free control valve: Features a diaphragm-free valve body structure with sealing material made of high-temperature resistant PPL. The valve body sealing material does not require replacement during instrument operation, ensuring maintenance-free performance and exceptional reliability.
7. Smart Water Replenishment: The intelligent water replenishment function reduces the labor intensity for laboratory personnel while preventing manual refilling from affecting the experimental water temperature, thereby avoiding temperature fluctuations that could disrupt normal experiment operation.
Technical parameter:
|
Project
|
Index
|
|
Pressure
|
Control range
|
0.40 Mpa ~1.20 Mpa
|
|
Control accuracy
|
Set value ±0.02 mpa (including cold-to-hot switching process)
|
|
Test stations
|
1–6
|
|
Maximum total measured cross-sectional area
|
6200 mm² (2 × φ63); can be customized upon request.
|
|
Circulation time for both hot and cold water
|
Any setting between 600s and 1800s
|
|
Time for alternating hot and cold water
|
≤60s
|
|
Number of cycles
|
Any number of times from 0 to 100,000
|
|
Maximum length of the straight pipe section in the sample
|
3700mm
|
|
Display mode
|

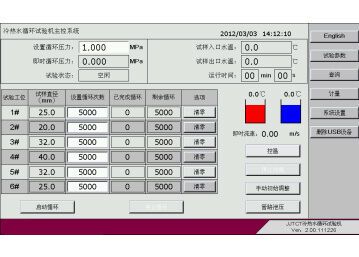

Touch screen display
|
|
Control method
|
Plc control
|
|
Velocity of flow
|
>0.9m/s
|
|
Headwaters
|
Water quality
|
Pure water, deionized water, or softened water
|
|
Automatic water supply pressure
|
＞0.05mpa
|
|
Temperature display reading error
|
±0.2℃
|
|
Temperature difference between the inlet and outlet of the sample
|
＜2℃
|
|
Cold water storage cistern
|
Temperature control range
|
20°c to room temperature (room temperature> 20°c)
|
|
Temperature control accuracy
|
Set value ±0.5°c
|
|
Temperature homogeneity
|
±0.5℃
|
|
Hot water tank
|
Temperature control range
|
Room temperature to 95°c
|
|
Temperature control accuracy
|
Set value ±0.5°c
|
|
Temperature homogeneity
|
±0.5℃
|
|
Source
|
380(1-15%)vac～380(1+10%)vac 50hz 25kw
|
|
Outline dimension
|
L5200 mm × W3200 mm × H2100 mm
|
|
Installation size
|
L6000 mm × W4000 mm × H3000 mm
|
|
Total weight
|
3210kg
|
Meet standards:
|
Standard Number
|
Standard Name
|
|
ISO 10508
|
Relevant regulations for thermoplastic pipes and fittings used in hot and cold water systems
|
|
ISO 19893
|
Plastics piping systems — Thermoplastics pipes and fittings for hot and cold water — Test method for the resistance of mounted assemblies to temperature cycling
|
|
.GB/T 19993-2005
|
Test Method for Thermal Cycling of Hot-Melt Plastic Water Supply and Drainage Pipe Systems and Pipe Joint Systems
|
|
GB/T 18997.1-2003
|
Aluminum-Plastic Composite Pressure Pipe – Part 1: Aluminum-Plastic Pipe with Overlap Welding of Aluminum Tube
|
|
GB/T 18997.2-2003
|
Aluminum-Plastic Composite Pressure Pipe – Part 2: Aluminum Pipe Joint-Welded Aluminum-Plastic Pipe
|
|
GB/T 18742.2-2002
|
Polypropylene Pipeline Systems for Hot and Cold Water – Part 2: Pipe Materials
|
|
GB/T 18742.3-2002
|
Hot and Cold Water Polypropylene Pipeline Systems Part 3: Fittings
|
|
GB/T 18992.2-2003
|
Hot and Cold Water Systems Using Cross-linked Polyethylene (PE-X) Pipe Materials – Part 2: Pipe Materials
|
|
GB/T 18993.2-2003
|
Chlorinated polyvinyl chloride (PVC-C) pipeline systems for hot and cold water – Part 2: Pipe materials
|
|
GB/T 18993.3-2003
|
Chlorinated polyvinyl chloride (PVC-C) pipeline systems for hot and cold water – Part 3: Fittings
|
|
GB/T 18991-2003
|
Thermoplastic plastic pipes and fittings for hot and cold water systems
|
