Differential Scanning Calorimeter DSC 500A Laboratory DSC Instrument for Thermal Analysis of Phase‑Transitions, Melting, Boiling & Chemical Reactions

Large Image : Differential Scanning Calorimeter DSC 500A Laboratory DSC Instrument for Thermal Analysis of Phase‑Transitions, Melting, Boiling & Chemical Reactions

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	DSC-500A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	10~15 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Differential Scanning Calorimeter DSC 500A Laboratory DSC Instrument For Thermal Analysis Of Phase‑Transitions, Melting, Boiling & Chemical Reactions	Temperature Range:	Room Temperature To 500 ℃
Temperature Resolution:	0.1 ℃	Heating Rate:	0.1 ~ 80 ℃ / Min
DSC Range:	0 ~ + 500 Mw	DSC Resolution:	0.01 MW
DSC Sensitivity:	0.1 MW
Highlight:	Differential Scanning Calorimeter DSC 500A , Laboratory DSC instrument for thermal analysis , DSC instrument for phase transitions analysis

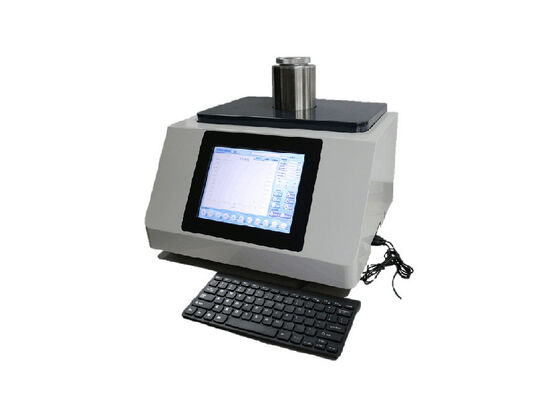

Differential Scanning Calorimeter DSC 500A

Laboratory DSC Instrument for Thermal Analysis of Phase-Transitions, Melting, Boiling & Chemical Reactions

Application Overview

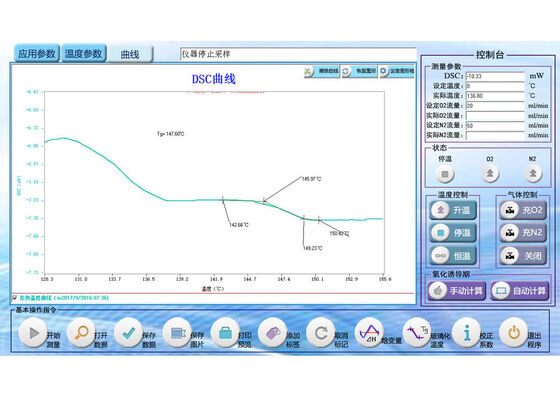

The Differential Scanning Calorimeter operates under programmed temperature control to characterize temperature offset correlations between test specimens and reference materials. This analytical technique generates differential thermal analysis curves showing temperature differences as functions of temperature or testing time.

DTA measurements detect temperature variations from endothermic or exothermic effects caused by phase transformations or chemical reactions, including:

Phase transition and melting processes
Crystalline-structure rearrangement
Boiling, distillation, and vaporization
Dehydrogenation and molecular cleavage
Decomposition and lattice-structure destruction
Oxidation-reduction and chemical transformations

Product Features

LCD liquid-crystal screen with blue backlight displaying comprehensive parameters
Universal USB communication port for stable data transmission with automatic recovery
Compact furnace assembly with configurable heating rates and mechanical fastening
Dual temperature probe system for accurate sample temperature measurement
Digital gas mass flow meters for automatic dual-gas atmosphere switching
Standard reference specimen calibration support
Dedicated furnace cooling port for rapid chamber cooling
Adaptive software display compatible with multiple monitor resolutions
Custom-programmed measurement workflows for automated testing sequences

Technical Specifications

Temperature Range	Room temperature to 500°C
Temperature Resolution	0.1°C
Heating Rate	0.1 ~ 80°C/min
DSC Range	0 ~ +500 mW
DSC Resolution	0.01 mW
DSC Sensitivity	0.1 mW
Power Supply	AC 220V 50Hz
PC Interface	USB

Industry Applications

The DSC-500A enables material characterization across diverse sample categories including polymers, plastics, rubber processing, pharmaceutical and cosmetic manufacturing, food packaging, and technical textiles. This thermal-analytical technique is widely adopted for material science and chemical industry workflows in R&D, process optimization, quality assurance, and failure investigation.

Standard Configuration
