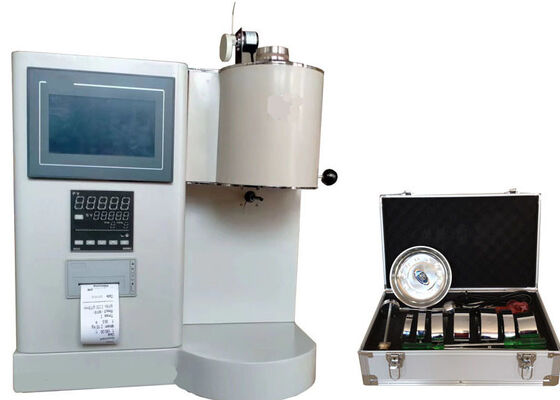

Melt Flow Index Tester, Precision Instrument for Polymer Melt Flow Rate & Viscosity Test in Plastic Production

Large Image : Melt Flow Index Tester, Precision Instrument for Polymer Melt Flow Rate & Viscosity Test in Plastic Production

Product Details:

Place of Origin:	Beijing, China
Brand Name:	TH
Certification:	ISO9001, CE
Model Number:	XNR-400D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Melt Flow Index Tester, Precision Instrument For Polymer Melt Flow Rate & Viscosity Test In Plastic Production	Temp.range:	40-400℃
Temperature Accuracy:	±0.1°C	Temperature Resolution:	0.01°C
Load:	0.325kg, 1.200kg, 2.160kg, 3.800kg, 5.000kg, 10.000kg, 12.000kg, 21.600kg	Time Range:	0.1~999s
The Diameter Of The Mold:	2.095±0.005 Mm	Cutting:	Auto
Packing Size And Weight:	0.8g50.780.8M3，90KG	Power Supply:	AC 220V/50Hz
Highlight:	Melt Flow Index Tester polymer , Melt Flow Indexer viscosity test , Melt Flow Index Tester plastic production

Product Overview: Melt Flow Index Tester for Polymer Flow Rate & Viscosity Testing

The Melt Flow Index Tester is a precision instrument engineered for measuring the melt flow rate (MFR) and melt volume flow rate (MVR) of thermoplastic polymers. It delivers reliable, repeatable data on material viscosity and processability, making it an essential tool for plastic production, quality control, and polymer research.
The instrument operates by melting plastic specimens inside a heated barrel. The molten material is loaded via a quantitative molding approach, and a built-in piston applies pressure to force the melt through a standard orifice die. Operators record either the mass of the extruded melt or the extrusion time, depending on the selected die and defined test parameters. The recorded data enables precise calculation of melt flow rate and flow index, which are used to assess the flow performance of polymer materials.

Applications Across Industries

This melt flow rate meter is widely deployed across plastic manufacturing, plastic finished goods production, and the petrochemical sector. It is also extensively used in universities, research institutes, and third-party inspection authorities. By measuring the flow rate of molten polymer passing through an orifice under specified conditions, the tester evaluates material viscosity traits and processability, delivering critical reference data for plastic material R&D and quality control procedures.

Measuring Principle: MFR and MVR Determination

Melt mass-flow rate (MFR) and melt volume-flow rate (MVR) are obtained by extruding molten specimens from the plastometer barrel under predefined temperature and loading conditions.

Melt Mass-Flow Rate (MFR)

Extrudate segments collected within set time intervals are weighed, and the extrusion rate is computed and documented in g/10 min.

Melt Volume-Flow Rate (MVR)

The system captures data either by detecting the piston travel distance over a fixed duration or by recording the time consumed for the piston to travel a designated distance, with the final result expressed in cm³/10 min. Mutual conversion between melt volume-flow rate and melt mass-flow rate is feasible when the material density under the given test environment is available.

Technical Specifications

Model No.	XNR-400D
Measuring Method	MVR & MFR & Density
Display & Print	Touch Screen, results printed by inner printer
Warranty	2 years on heating jacket
Cutting	Auto
Max Temperature	400 °C
Test Load (Eight Grades)	8 kinds of weight: 0.325 kg, 1.200 kg, 2.160 kg, 3.800 kg, 5.000 kg, 10.000 kg, 12.000 kg, 21.600 kg
Temperature Control	By SHIMAX Digital Controller (Made in Japan)
Controlled Accuracy	± 0.1 °C
Display Resolution	0.01 °C
Measuring Range	(0.1–350) g/10 min; (0.01–350) cm³/10 min
Timing Clock Resolution	0.01 s
Power Supply	220 V, 500 W
Packing Size & Weight	0.85 × 0.78 × 0.8 m³, 90 kg

Compliant Standards

This melt flow index tester complies with international and domestic test specifications, including:

GB3682
ISO1133
JB/T5456
ASTM D1238
ASTM D3364

Technical Support & After-Sales Service

Comprehensive technical support and after-sales services are available for all our Melt Flow Index Testers. Our professional technical team offers round-the-clock assistance via telephone, email, and online instant messaging to address your inquiries and technical issues. We supply thorough operation manuals and tutorial videos to help you maximize the performance of your Melt Flow Index Tester.
We also offer multiple warranty options and customized service agreements to keep your equipment in optimal operating condition. Warranty coverage extends up to 5 years against defects in raw materials and manufacturing workmanship. Service contracts cover on-site maintenance, troubleshooting, and repair, along with the replacement of any faulty components.
Should you have any enquiries regarding our technical support and service packages for the Melt Flow Index Tester, please contact us at any time.

Frequently Asked Questions

Q1: What constitutes a Melt Flow Index Tester?

Manufactured by TH with its facility located in Beijing, China, the Melt Flow Index Tester is a test instrument dedicated to determining the melt mass-flow rate of thermoplastic materials.

Q2: What function does the Melt Flow Index Tester serve?

The Melt Flow Index Tester measures the melt mass-flow rate of thermoplastics, delivering vital reference data for plastic material quality control workflows.

Q3: Which thermoplastic materials are compatible with the Melt Flow Index Tester?

This tester supports testing for an extensive spectrum of thermoplastics, including polyethylene, polypropylene, ABS, and other related polymer materials.

Q4: What functional characteristics does the Melt Flow Index Tester possess?

The Melt Flow Index Tester is equipped with multiple practical features, including digital readout, data storage capability, an intuitive human-machine interface, and a space-saving compact structure.

Q5: What benefits does the Melt Flow Index Tester bring to users?

Featuring high precision and stable repeatability, the Melt Flow Index Tester rapidly generates critical data for plastic material quality evaluation. Its intuitive interface and compact construction simplify operation and facilitate convenient transportation.
